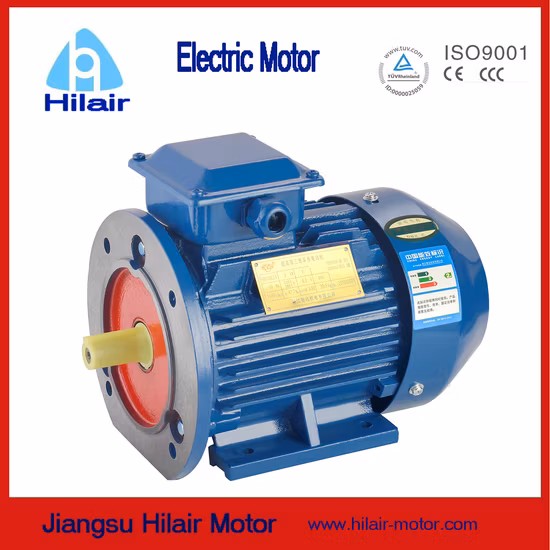

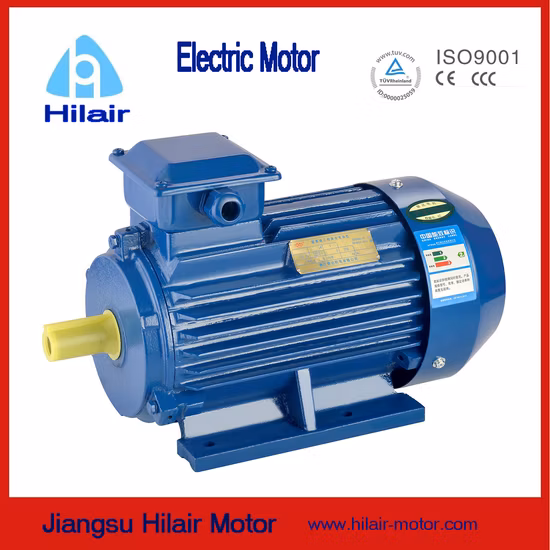

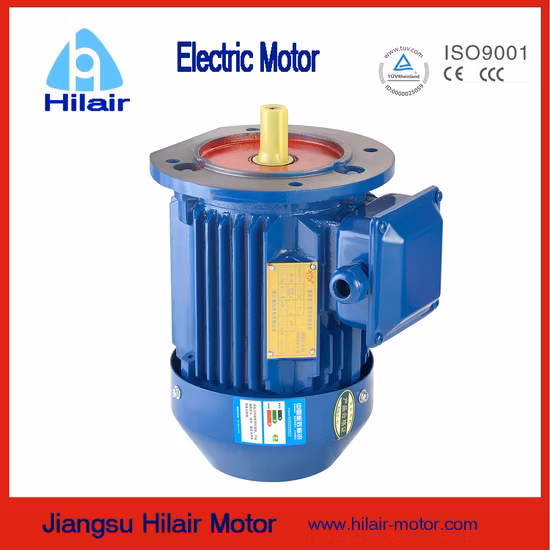

Ye3 Premium High Efficiency Three Phase Induction AC Electric Asynchronous Motor

Ye3 Premium High Efficiency Three Phase Induction AC Electric Asynchronous Motor

Features of Hilair YE3 motors: Frame Material: cast iron Standard Color: Gentian blue (RAL 5010) Standard Frequency: 50H
Basic Info.
Model NO. YE3
Number of Poles 2-10
Starting Mode Direct on-line Starting
Certification ISO9001, CCC
Brand Hilr
Efficiency 68-95.4%
Power 0.55 to 200 Kw
Power Factor 0.72-0.89
Noise 56-92 dB
Transport Package Carton Box, Wooden Box
Specification steel housing, aluminum housing
Trademark hilr
Origin China
HS Code 8501520000
Production Capacity 1000000
Product Description

Features of Hilair YE3 motors:
Frame Material: cast iron

Standard Color: Gentian blue (RAL 5010)

Standard Frequency: 50Hz (available in other frequencies)

Available in 2, 4, 6 pole for 0.75kW and aboveEfficiency Grade: IE3(50Hz) according to IEC 60034-30.

Way of Mounting: B3, B5, B35, etc according to IEC 60034-7

Protection Level: IP55 (IEC 60034-5)Insulation Level: Level F (155 celsius)

Cooling Method: IC 411 according to IEC 60034-6, Self ventilated fans. Seperate cooling fans are available

Working Altitude: shall not exceed 1000m above sea-level (IEC 60034-1)

Ye3 Premium High Efficiency Three Phase Induction AC Electric Asynchronous Motor


Ye3 Premium High Efficiency Three Phase Induction AC Electric Asynchronous Motor


Ye3 Premium High Efficiency Three Phase Induction AC Electric Asynchronous Motor

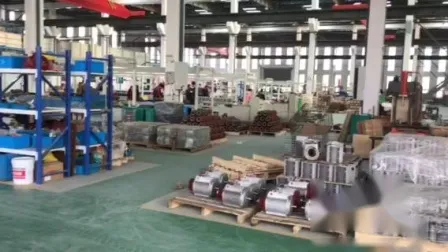

Jiangsu Hilair Electromechanical Technology Co., Ltd, (originally Zhejing Yinda) can date back to the year of 1992. Located in Jianhu Hi-Tech Zone of Jiangsu Province, China, the company takes an area of 16,000 sqm with near 200 employees. The factory is equipped with complete series of production lines and equipment. And the annual output value is around 30 million US dollars.Hilair specializes in the design and development of AC motors, such as IE1, IE2, IE3, IE4 series, cast iron and aluminum housing, AC & DC braked motors, variable frequency motors, grinding machine motors, etc.Products have been exported to all over the world with the best prices and high quality.We always insist on the principle of "people oriented, scientific and technological innovation". We look forward to your long term cooperation.

Ye3 Premium High Efficiency Three Phase Induction AC Electric Asynchronous Motor


Q1 Are you a manufacturer or a trading company?
We are a manufacturer of AC asynchronous motors in China.Q2 Where is your factory? Jianhu, Jiangsu province.Q3 What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.Q4 What about delivery time? Normally, 30 days after the receipt of payment.Q5 About shipment? By sea, By air and By express delivery.Q6 About sample? Available.
